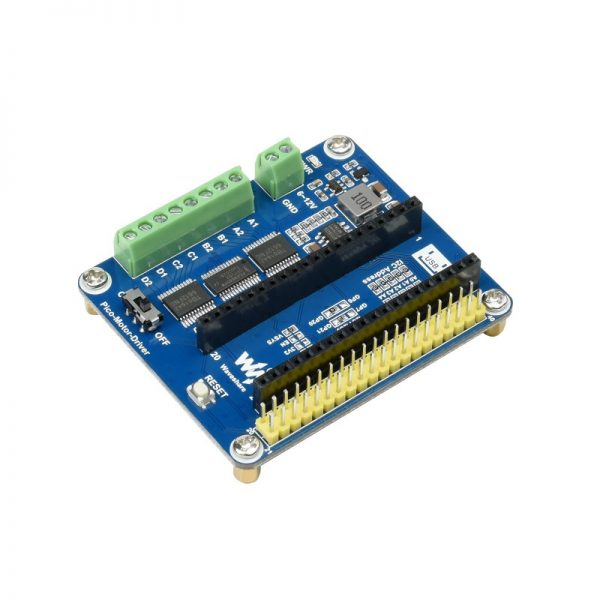

Features at a glance
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- I2C controlled, supports 32x different I2C addresses by setting the 5 address jumpers
- Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
- Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
- Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
- Breakout unused pins of Pico for easy extension
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 6~12V (VIN terminals) | Logic level | 3.3V |
|---|---|---|---|
| PWM driver | PCA9685 | Motor driver | TB6612FNG |
| Control interface | I2C | Dimensions | 65 × 56mm |
Raspberry Pi Pico header compatibility
onboard female pin header for direct attaching to Raspberry Pi Pico
Onboard 5V regulator
Pinout definition
Outline dimensions
