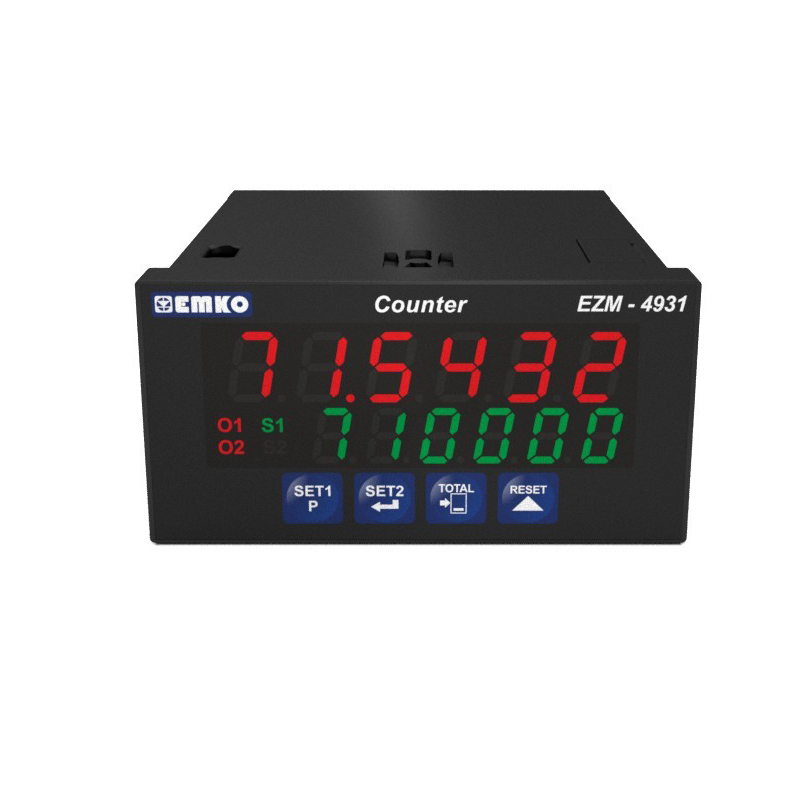

EMKO EZM-4931. A 6 digit predetermining counter with 2 relay outputs.
The EZM-4931 is capable of displaying and controlling almost any count application. It has a dual relay output, which can be used to signal or control external devices or processes.
Count down to zero or count up to preset.
Features
13mm character high visibility LED display
1/8 DIN (96mmX48mm) bezel, Panel cut-out 92x46mm.
Simple user programming
Display scaleable to show engineering units
Programme lock out facility
AC and DC powered models available
RS232 communications option
CE approved. GOST-R
NEMA 4X (IP65 at front, IP20 at rear)
Specifications
Power Supply
AC Powered 230VAC(-15% / +10%) 50/60Hz 6VA.
Sensor supply
12VDC ±12% 50mA max.
Display
13mm character high visibility LED Display.
Signal Input
Sink(NPN) or Source(PNP)
Control Inputs
Sink(NPN) only (4.75kO to +5VDC) internal load.
Threshold
High 3VDC.
Low 0-2VDC.
Operating Temperature 0°C to 50°C.
Storage Temperature -40°C to 85°C.
Humidity 0 to 90%RH non condensing.
Front Panel Protection
IP65
Approvals CE approved.
Outputs
Relay output
2 relay output on resistive load 5A @ 250V
