Descriptions :

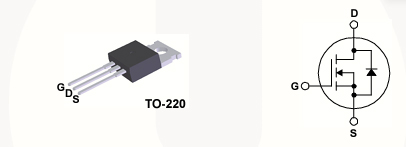

This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance.
Features
- • RDS(on) = 1.96 mΩ ( Typ.) @ VGS = 10 V, ID = 75 A
- • Low FOM RDS(on)*QG
- • Low Reverse Recovery Charge, Qrr
- • Soft Reverse Recovery Body Diode
- • Enables Highly Efficiency in Synchronous Rectification
- • Fast Switching Speed
- • 100% UIL Tested
- • RoHS Compliant
Applications :
- Synchronous Rectification for ATX / Server / Telecom PSU
- Battery Protection Circuit
- DC motor Drives and Uninterruptible Power Supplies
- Micro Solar Inverte
.
Vous pouvez télécharger la fiche technique
Cliquez ici
