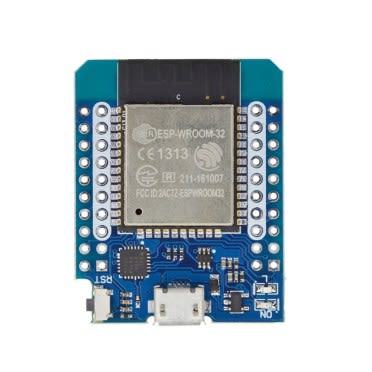

MINIKIT ARDUINO

Supply Voltage: 3.0 V ~ 3.6 V (VCC), 3.0V – 5.0V (USB and 5V)

Operating Voltage: 3.3V (GPIO pins)

Power Consumption:

• 30mA – 80mA (idle)

• 100mA – 240mA (WiFi/Bluetooth RX/TX)

• 10µA – 150µA (Deep Sleep)

• 5µA (RTC Timer Only)

Peripheral Interfaces: UART, SPI, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC

WiFi – 802.11 b/g/n (802.11n up to 150 Mbps) @2.4 GHz ~ 2.5 GHz

Bluetooth – Bluetooth v4.2 BR/EDR and BLE specification

Operating Temperature: –40 °C ~ +85 °C

40 Available GPIO Pins
