1. SCOPE

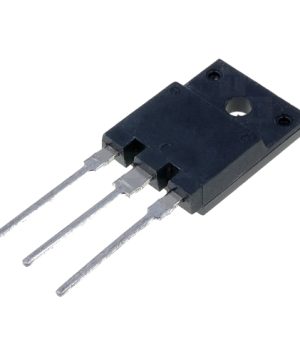

This specification provides the ratings and the test requirement for FUJI SILICON DIODE
PH967C6
2. Application
PFC circuit(current continuous mode)
This diode is a product which optimizes the diode characteristic for the PFC circuit.This product is a
product by which the trr characteristic was valued more than VF though there is a relation of the
trade-off up to VF and Trr.The total loss of the PFC circuit can be suppressed by shortening trr.
3. OUT VIEW, MARKING, MOLDING RESIN, CHARACTERISTICS
(1) Out view is shown MS5D1445 9/12
(2) Marking is shown MS5D1445 9/12
It is marked to type name or abbreviated type name, polarity and Lot No.
(3) Molding resin
Epoxy resin UL:V-0
(4) Characteristics is shown MS5D1445 10/12~12/12
