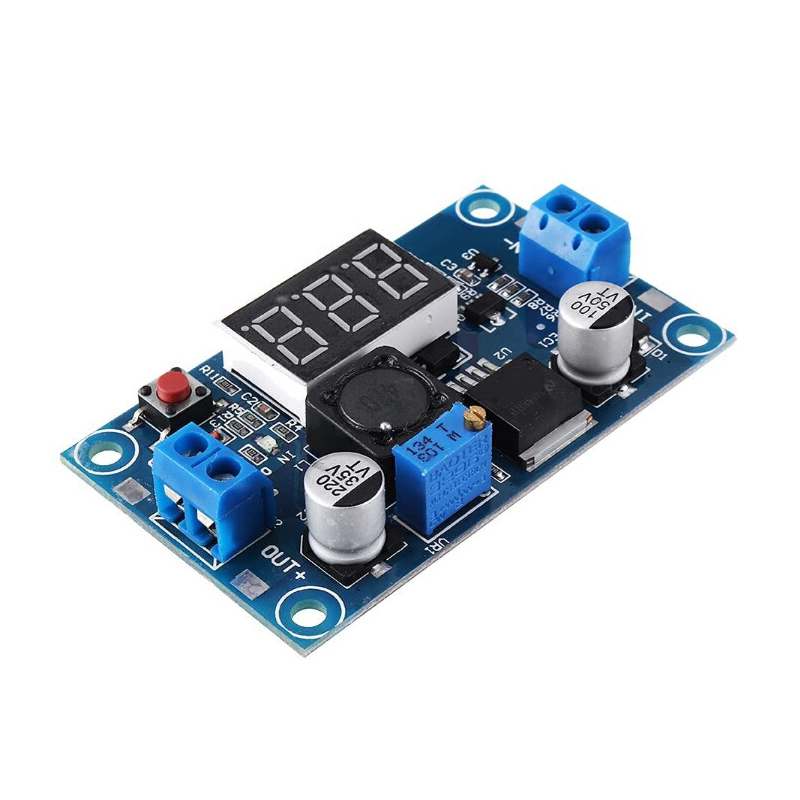

REGULATEUR DE TENSION DC-DC AVEC AFFICHEUR SEPT SEGMENTS (LM2596S ADJ)

• Press the touch button for 3 seconds to turn off the LED display, press the button again to turn on the LED display

• Input voltage 4.0-40V (input voltage to output voltage must be more than 1.5V)

• Output voltage range 1.25V-37V continuously adjustable (the input voltage must be higher than the output voltage at a high value of about 1.5V)

• Maximum output current up to 3A, normal and stable operating current of 2A

• Second generation switching voltage regulator, low power consumption and high efficiency

• The output current is fixed at maximum 3A and the output voltage goes through ESR filtering

Features

• Internal oscillation frequency: 150 KHz

• Current: 3A

• Voltage: 18V,21V,24V,28V,DC 12V,DC 24V

• Input voltage: 3.2 -40 V

• Output voltage: 1.3 -35V

• Output current: 3A Max

• Dimension: 43 x 21 x 14mm

• Switching LED: Red
