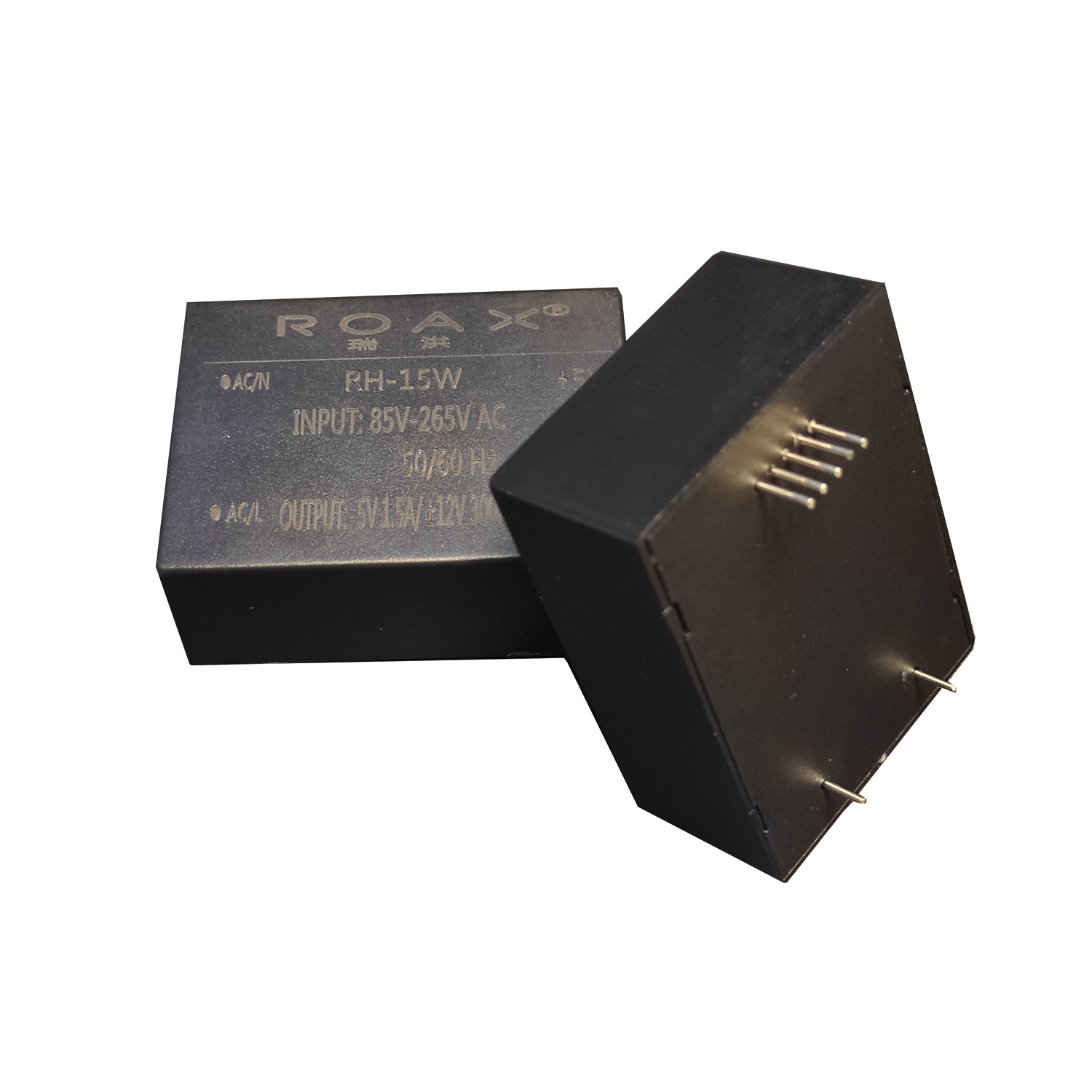

RH-15W CONVERTISSEUR AC/DC

Spécification:

• Tension d’entrée : AC 85 V-265 V.
• Tension d’entrée : DC 100 V-300 V.
• Gamme de fréquences : 47 Hz-63 Hz.
• Alimentation en veille : <150 mV/230 VAC

5V:
Rated current: 2000 mA.
Current range: 0-2000 mA.
Rated power: 10 W.
Residual ripple: <150 mV.
Output accuracy: ±1%.
Voltage control rate: ±1%.
Load adjustment rate: ±1%.
Overswing the switch: 10%.

6V:
Rated current: 2000 mA.
Current range: 0-2000 mA.
Rated power: 12 W.

9V:
Rated current: 1500 mA.
Current range: 0-1500 mA.
Rated power: 15 W.

12 V:
Rated current: 1200 mA.
Current range: 0-1200 mA.
Rated power: 15 W.

15 V:
Rated current: 1000 mA.
Current range: 0-1000 mA.
Rated power: 15 W.

24 V:
Rated current: 600 mA.
Current range: 0-600 mA.
Rated power: 15 W.

36 V:
Rated current: 400 mA.
Current range: 0-400 mA.
Rated power: 15 W.
