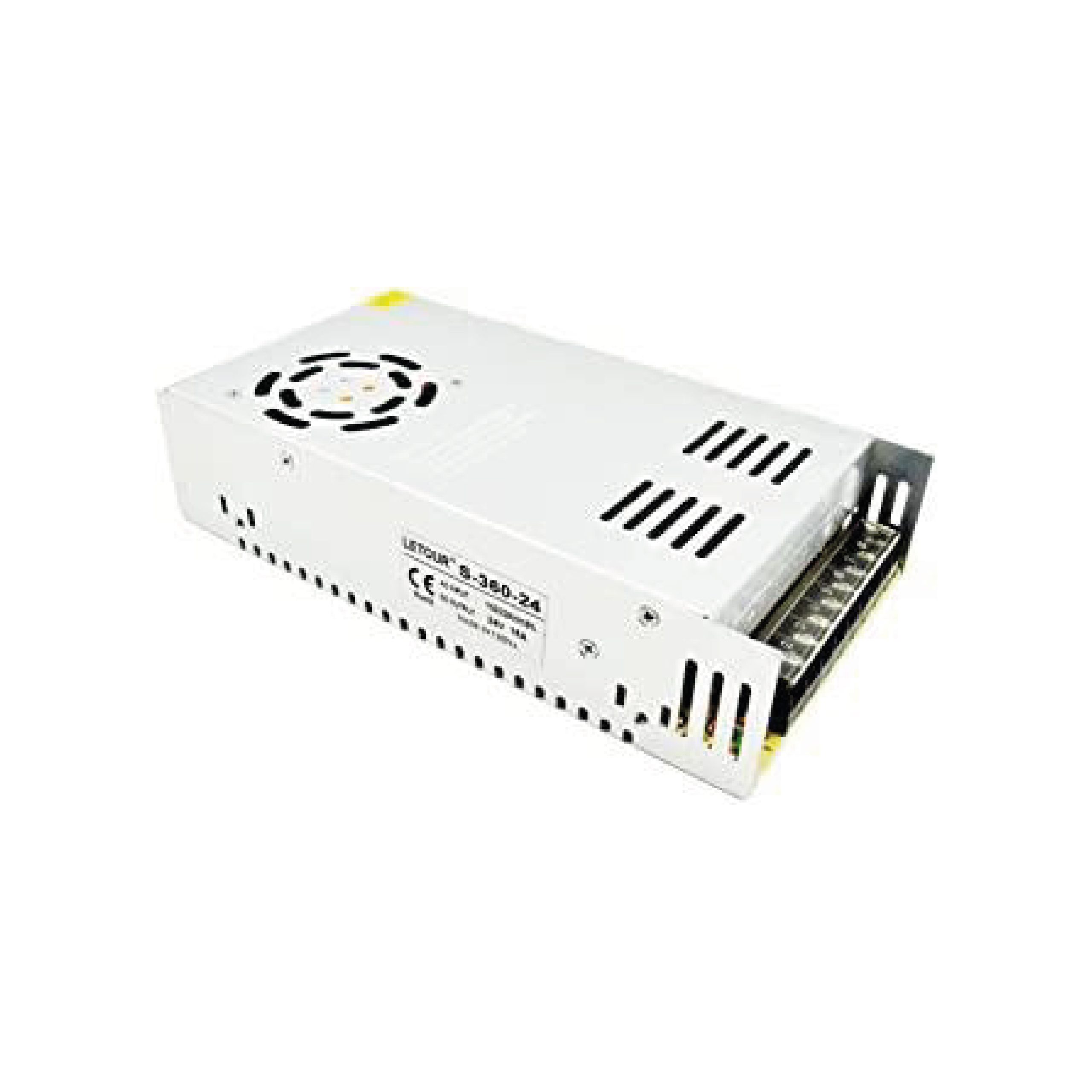

- DC Voltage: 24V DC
- Current : 15A
- Ripple & Noise: 80MV
- DC Adjustable Range: ±10%
- Rated Voltage Voltage Tolerance: ±2.0%
- Line Regulation: ±0.5%
- Load Regulation: ±1% Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC AC
- Voltage Range: 85-264VAC
- Frequency Range: 47-63Hz
- Efficiency:85%
- AC Current: 0.86/115V 0.4A/230V
- AC Inrush Current: 20A/115V 40A/230V
- Leakage Current< 0.5mA /240VAC
- Over-load: 105%-150% hiccup mode,Auto-recovery
- Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
- Over-temp. : Shut down O/P voltage, Auto-recovery
- Working temp.: -10~ +60C° (Refer to output load derating curve)
- Working Humidity:20 ~ 90% RH, non-condensing
- Storage Temp.: -10~ +60C°
- Storage Humidity: 10 ~ 95% RH
- Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
- Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
