| Specifications | Range | Best Accuracy | |

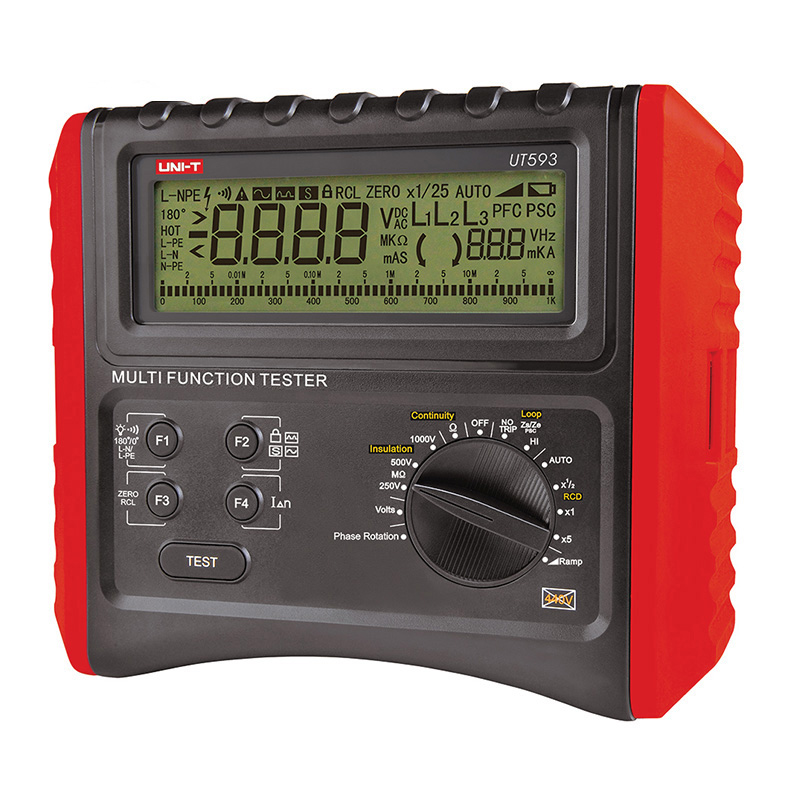

| Model | UT593 | ||
| Insulation resistance (Ω) | Output voltage | 250V/500V/1000V | ±10% |
| 250V | 0.05MΩ～250MΩ | ±(5%+5) | |
| 500V | 0.05MΩ～500MΩ | ||
| 1000V | 0.05MΩ～1000MΩ | ||
| Short-circuit current | <2mA | ||
| Low-resistance continuity test | Range | 0.00Ω～199Ω | ±(2%+5) |
| Test current | 0.00～2Ω: >200mA | √ | |
| Line impedance (Ω) | Range | 0.01Ω～2000Ω | ±(5%+5) |
| Operating voltage (Frequency) | 195V～440V (45Hz～65Hz) | √ | |
| Test current | 20A | √ | |
| PFC test | 0kA～26kA | √ | |
| Loop impedance (Ω) | Range | 0.01Ω～2000Ω | ±(5%+5) |
| Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ | |
| Test current | 20A | √ | |
| PFC test | 0kA～26kA | √ | |
| Non-trip loop impedance (Ω) | Range | 1.00Ω～2000Ω | ±(5%+5) |
| Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ | |
| Test current | 15mA | √ | |
| PFC test | 0kA～26kA | √ | |
| RCD test | Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ |
| Test current | 10mA/30mA/100mA/300mA/500mA | ±10% | |
| Trip time | ×1/2 *I△n Range: 0ms～2000ms | ±(5%+5) | |
| ×1 *I△n Range: 0ms～300ms | |||
| ×1 *I△n Range: 0ms～500ms (Select count down) | |||
| ×5 *I△n Range: 0ms～40ms | ±(5%+5) | ||
| Phase sequence test | Operating voltage (Frequency) | 100V～440V (45Hz～65Hz) | √ |
| Display | Phase sequence: L1→ L2→ L3, forward rotation; L1→ L3→ L2 reverse rotation | √ | |
| Ramp RCD test | Test current | 10mA/30mA/100mA/300mA/500mA | ±10% |
| AC voltage (V) | Range | 0V～440V | ±(5%+2) |
| Frequency response | 45Hz～60Hz | √ | |
| Resolution | 1V | √ | |
| Features | |||
| Display count | 9999 | ||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| Data storage | √ | ||
| LCD backlight | √ | ||
| Auto half-wave test | √ | ||
| RCD count down test | 30s | √ | |
| RCD half-wave test | √ | ||
| Phase conversion (RCD) | 0° and 180° | √ | |
| General Characteristics | |||
| Power | 1.5V battery (5#) × 6 | ||
| LCD size | 125mm × 37mm | ||
| Product color | Red and grey | ||
| Product net weight | 1000g | ||
| Product size | 210mm × 175mm × 90 mm | ||
| Standard accessories | Battery, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead | ||
