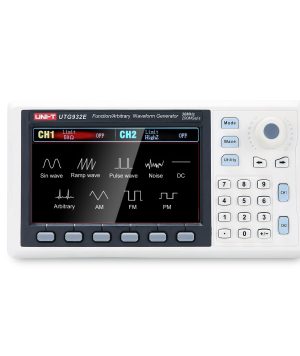

Technical Specifications
|
Model |

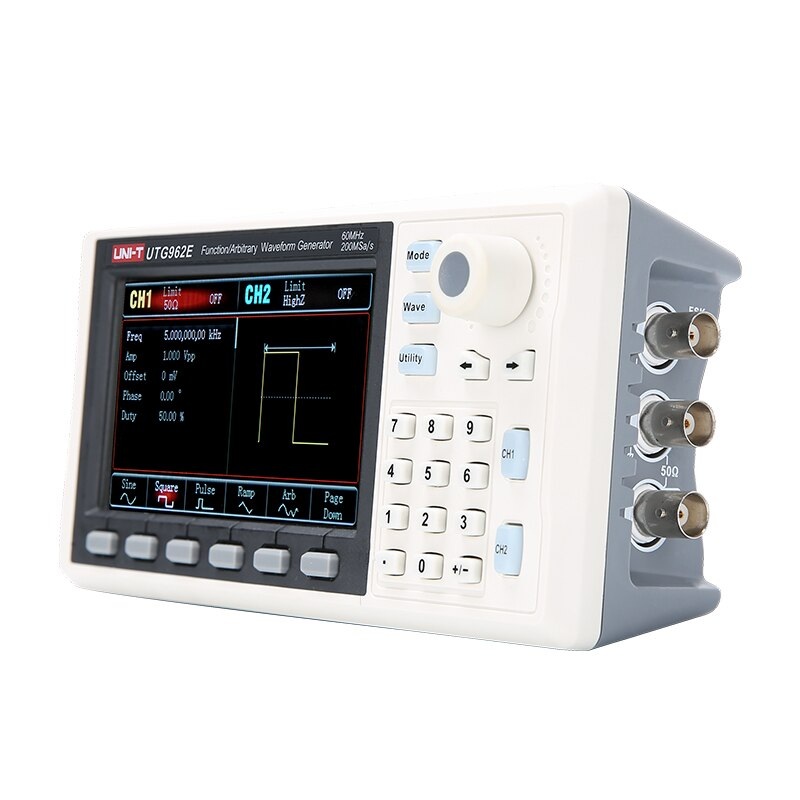

UTG962E |
|
Channel |
2 |
|
Max frequency |
60MHz |
|
Sampling rate |
200MSa/s |
|
Waveform |
Sine wave, square wave, ramp wave, pulse wave, noise, DC, arbitrary wave |
|
Working modes |
Output gating, continuous, modulation, frequency sweep |
|
Modulation types |
AM, FM, PM, FSK, Line, Log |
|
Frequency characteristic |
|
| Sine wave | |
|
Frequency range |
1pHz-60MHz |
|
Resolution |
1pHz |
|
Accuracy |
within 90 days: ±50ppm, within 1 year: ±100ppm (18°C-28°C) |
|
Harmonic distortion(typical value) |
Test condition: output frequency OdBm |
|
-60dBc |
|
| -50dBc 30MHz | |
|
-40dBc —60MHz |
|
|
THD(typical value) |
<0.2%(DC-20kHz, 1Vpp) |
|
Spurious signal (non-harmonic wave, typical value) |
test condition: output power OdBm |
|
DC-10MHz, <-70dBc |
|
|
> 10MHz < -70dBc+6dB/octave |
|
|
Phase noise (typical value) |
10 MHz:-125dBc/Hz (typical, OdBm, 10kHz deviation) |
| Square wave | |
|
Frequency range |
1pHz-20MHz |
|
Resolution |
1pHz |
|
Rise/fall time |
<16ns (typical value, 1kHz, 1Vpp) |
|
Overshoot(typical value) |
<2% |
|
Duty ratio |
0.01%-99.99% (limited by current frequency) |
|
Symmetry |
1ns + 100ppm of period |
|
(50% duty ratio) |
|
|
Shake (typical value) |
Typical value (1MHz, 1Vpp, 500) |
|
5MHz: 2ppm+200ps |
|
|
>5MHz: 200ps |
|
|
Ramp wave |
|
|
Frequency |
1pHz-400kMHz |
|
Resolution |
1pHz |
|
Nonlinearity |
3%±2mV (typical value, 1kHz, 1Vpp, symmetry 50%) |
|
Symmetry |
0.0% — 100.0% |
|
Pulse wave |
|
|
Frequency |
1pHz-20MHz |
|
Resolution |
1pHz |
|
Pulse width |
?8Ons |
|
Variable edge |
15ns-8s |
|
Overshoot |
<2% (typical value 1Vpp) |
|
Shake |
150ps |
|
Gauss noise |
|
|
Bandwidth |
60MHz(-3dB, typical value) |
| DC offset | |
| Range (peak AC+DC)
±5V(500) |
|
|
±10V (high resistance) |
|
|
Offset accuracy |
±3% of offset set value ± 6% of amplitude value ±2mV |
|
Arbitrary wave characteristics |
|
|
Frequency range |
1pHz—’10MHz |
|
Resolution |
1pHz |
|
Wave length |
4kpts |
|
Vertical resolution |
14bits (symbol included) |
|
Sampling rage |
200MSa/s |
|
Minimum rising/falling time |
< 2Ons typical value |
|
Shake |
5ns±150ps |
